Dimlux  Expert Series - 315 Watt LEC

Dimlux Expert Series - 315 Watt LEC

Galaxy Grow Amp Electronic Ballast - 600W

Galaxy Grow Amp Electronic Ballast - 600W

Dimlux Expert Series - 1000 Watt DE

CA$707.19

DIMLUXEXPERT SERIES 1000W EL UHF

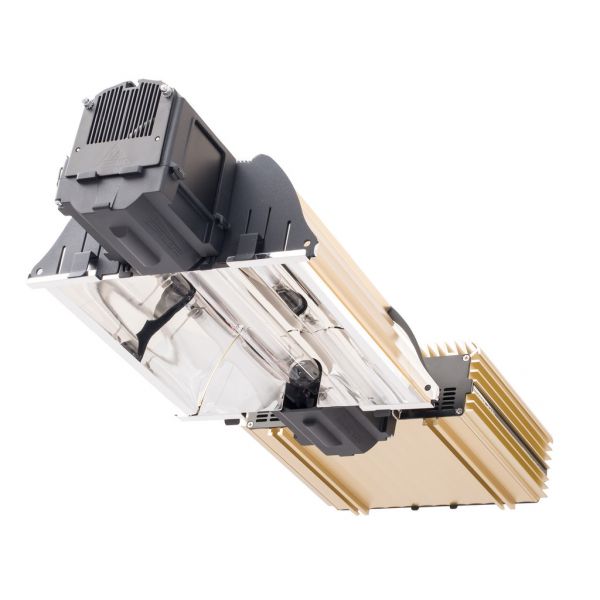

THE DIMLUX EXPERT IS A SERIES OF COMPLETE FIXTURES INCLUDING THE ALPHA OPTICS REFLECTOR.

DimLux Expert Series 1000W DE EL UHF. Comes standard with a 2.5 meter Interlink cable.

The DimLux Expert Series 1000W DE EL UHF is a complete fixture including the Alpha Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. As a result the highest possible efficiency (98%) of all available horticulture reflectors is achieved.

Provided with adjustable side reflectors for better overlap and to minimize wall losses. Due to the open design of the reflector the lamp is passively cooled which is a benefit for the life and efficiency of the lamp. There is a 50mm socket on the reflector which can be used to significantly reduce the room temperature by actively extracting the air. There are also optional add-on reflectors available which be placed to minimize the wall loss even more. This reflector is replaceable. Including BLV Horturion 1000W DE EL 2.2 Plus lamp.

If a longer Interlink cable is needed it must be ordered separately.  The available sizes are:



  • Dimlux Interlink cable 0.6 meter
  • Dimlux Interlink cable 1.5 meter
  • Dimlux Interlink cable 2 meter
  • Dimlux Interlink cable 2.5 meter
  • Dimlux Interlink cable 3.5 meter
  • Dimlux Interlink cable 5 meter
  • DimLux Interlink cable 10 meter



For even more information, visit Dimlux's new site at http://dimlux.nl/

To view the available accessories for the DimLux products, click this link here.

SKU
201710261357

1000 WATT DE EL UHF Specifications: Suitable for: 1000W 400V EL UHF Reflector: Alpha Optics Miro Silver with 98% Efficiency Output: 600-1200 Watt Connection: 230V standard (also available with 277V upon request) Overdrive: 20% Soft Start: Low inrush for use without Maxi Controller and Zero start (no inrush) for use with the Maxi Controller Soft Dim: Yes Dimming: 7 dim levels and off mode.

Can be switched on and off via the Maxi Controller as well as Infinite Step-less dimming Dim Levels: Soft Off, 600W, 700W, 800W, 900W, 1000W, 1100W, 1200W Frequency: UHF Ultra High 140 KHz Lamp: Philips Master GreenPower Plus 1000W / 400V DE EL 2.2 Plus lamp Power Consumption: @1000W = 1.050W 4.5A at 230V @1200W – 1.260W, 5.2A at 230V Par / PPF: 2,470 µmol/s at 1200W * 2.05 µmol/Watt Illumination Surface: @1000W = min 1.4m² (15.06ft²), max 3.3m² (35.52ft²) 6 x 6 Footprint/Spread @1200W = min 1.65m² (17.76ft²), max. 4m² (43.05ft²) 6½ x 6½ Footprint/Spread Diagnostics: Red & green LED signals Dimensions: 26 ½”” x 10 ¾” x 5 ⅛” / 67.5cm x 27.5cm x 13cm Weight: 13.88 lbs / 6.3 Kg
